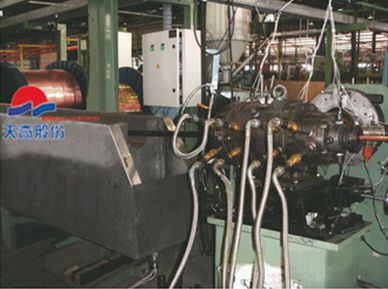

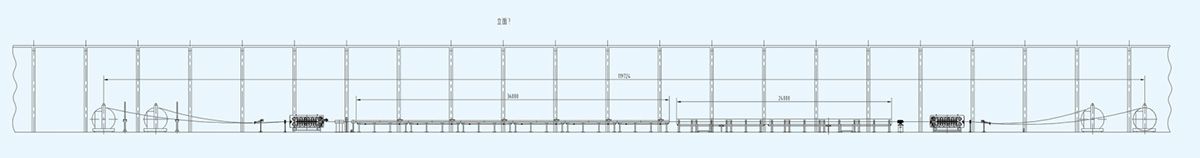

This cable extrusion line adopts silane cross-linking technology that can provide great flexibility and superior mechanical performance. For manufacturing silane XLPE insulated cables of voltage higher than 1.8/3(3.6)kV, three layers of conductor screen layer, insulation layer and insulation screen layer are extruded in one step. When the XLPE insulated cables of voltage below 1.8/3(3.6)kV need to be produced, operator can use one extruder from all the three to independently extrude the insulation layer.
| Voltage class | 6kV/15kV or below | ||
| Conductor size | 25-300mm2 | ||
| Max. cable diameter | 40mm | ||

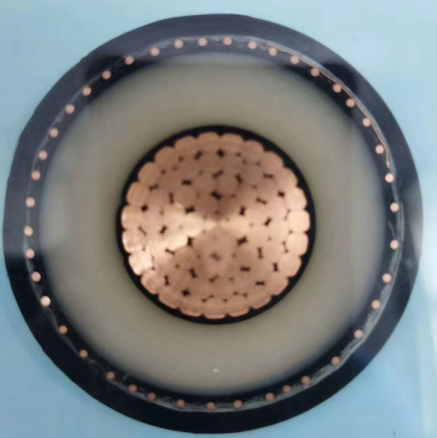

| Cable construction | Conductor screen (inner semiconductor layer) 0.5-2mm |
Insulation 2-5.5mm | Insulation screen (outer semiconductor layer) 0.5-2mm |
| Line speed | 0-30m/min | ||
| Length of warm water trough | 18m | ||
| Length of cooling water trough | 12m | ||
| Arrangement of extruders | Φ65 extruder for conductor screen Φ120 extruder for silane XLPE Φ90 extruder for insulation screen |
||
| Electricity | Installation capacity 336kVA | 380 V ±10% 50Hz±1% | 3 phase 4 wire |
| Water | Water pressure 0.2-0.6MPa | Water consumption 10m3/h (circulating water from reservoir) |
|
